Fujikara 66S+ Splicing Machine
Fujikara 66S+ Splicing Machine

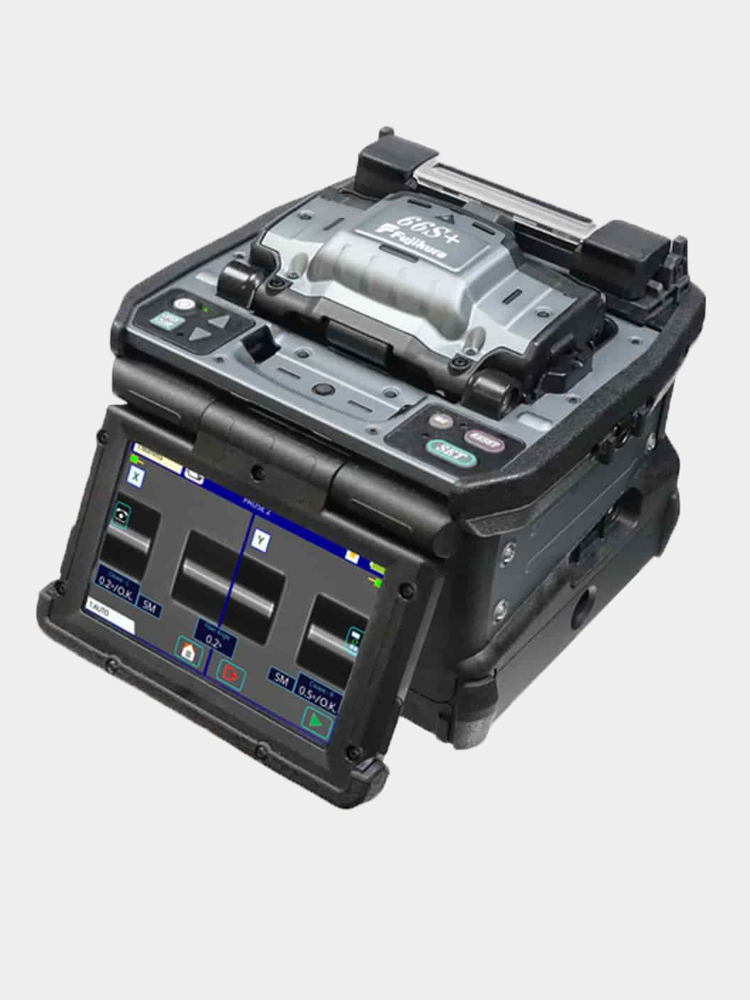

The 66S+ is a core alignment fusion splicer equipped with PAS (Profile Alignment System) for precise core-to-core fiber alignment for stability, low splice loss, and accurate splice loss estimation, regardless of the fiber type or quality. The Fujikura 66S+ comes with a host of features, including “Easy Sleeve Positioning” for a faster splicing cycle. It is equipped with a 4.9-inch size, LCD monitor with a touch screen. The Fujikura 66S+ has an elegant design, a compact size, and is also lightweight that enabling it to be carried and used in a variety of environmental conditions. This model has Active Fusion Control technology.
Order Now
Item |
Specification |
||
Fiber alignment method |
Active core alignment |
||
Fiber count can be spliced |
Single fiber |
||
Applicable fiber |
Fiber type |
SMF(G.652/657), MMF(G.651), |
|
Cladding dia. |
80 to 150um
|
||
Applicable coating |
Sheath clamp |
Coating dia. : Max. 3,000um
|
|
Cleave length : 5 to 16um
|
|||
Fiber splice performance |
Splice loss |
ITU-T G.652 : Avg. 0.02dB |
|
ITU-T G.651 : Avg. 0.01dB |
|||
ITU-T G.653 : Avg. 0.04dB |
|||
ITU-T G.654 : Avg. 0.04dB |
|||
ITU-T G.655 : Avg. 0.04dB |
|||
ITU-T G.657 : Avg. 0.02dB |
|||
Splice time |
Typical 7 sec. |
||
Applicable protection sleeve |
Sleeve type |
Heat shrinkable sleeve |
|
Sleeve length |
Max. 66mm |
||
Sleeve dia. |
Max. 6.0mm before shrinking |
||
Sleeve heat |
Heat time |
60mm mode : typical 25sec. |
|
Fiber tensile test force |
Approx. 2.0N |
||
Electrode life |
Approx. 5,000 splices |
||
Physical description |
Dimensions (mm) |
170W x 173D x 150H without projection |
|
Weight |
Approx. 2.7kg including battery |
||
Environmental condition |
Temperature |
Operate : -10 to 50oC |
|
Storage : -40 to 80oC |
|||
Humidity |
Operate : 0 to 95%RH non-condensing |
||
Storage : 0 to 95%RH non-condensing |
|||
Altitude |
Max. 5,000m |
||
AC adaptor |
Input |
AC100 to 240V, 50/60Hz, Max. 1.5A |
|
Output |
Approx. DC 12V, Max.7A |
||
DC adaptor |
Input |
DC10 to 15V, Max.7A |
|
Battery pack |
Type |
Rechargeable Lithium Ion |
|
Output |
Approx. DC14.4V / 6,380mAh |
||
Capacity |
Approx. 300 splice and heat cycles |
||
Temperature |
Operate : -10 to 50oC |
||
Recharge : 0 to 40oC |
|||
Storage : -20 to 30oC |
|||
Battery life |
Approx. 500 recharge cycles |
||
Display |
LCD monitor |
TFT 4.9 inches with touch screen |
|
Magnification |
200 to 320x |
||
Illumination |
V-grooves |
LED lamp |
|
Interface |
PC |
USB2.0 Mini B type |
|
External |
USB2.0 A type |
||
Ribbon Stripper |
Mini DIN 6pin DC12V, Max. 1A |
||
Data storage |
Splice mode |
100 splice modes |
|
Heat mode |
30 heat modes |
||
Splice result |
20,000 splices |
||
Splice image |
100 images |
||
Other features |
Automatic functions |
Splice mode select by fiber type analysis |
|
Fusion control |
|||
Wind protector : open and close |
|||
Sheath clamp : open |
|||
Splice start |
|||
Heater start |
|||
Special splice |
Attenuation splice |
||
Reference guide |
Video and PDF file stored in splicer |
||
Sheath clamp |
Easy sleeve positioning clamp |
||
Electrode |
Replaceable without tool |
||
Software for PC |
Splicer firmware update via internet |
||
Parameter upload and download |
|||
Operating splicer with PC |
|||
Splice image download to PC |
|||
